Library

Signal\Block Diagram Non-Linear

Use

Domains: Discrete, Continuous. Size: 1-D. Allowed in: Block Diagrams.

Description

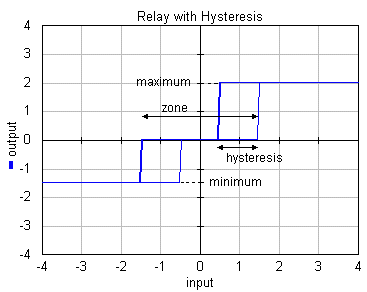

The output signal of this submodel switches between max and min parameters, depending on the sign of the input signal, with hysteresis and dead zone applied.

RelayHysteresis

Interface

Inputs

Description

input



Outputs



output



Parameters



minimum

maximum

zone

hysteresis

Minimum value of the output.

Maximum value of the output.

Magnitude of the dead zone.

Magnitude of the hysteresis.
