Equation Editor Taskbar

Previous pageReturn to chapter overviewNext page

When you select an equation model, the corresponding equations are show in the Equation Editor. A special button bar, called the taskbar, is part of the Equation Editor. The taskbar helps you to enter functions, statements, templates etc.

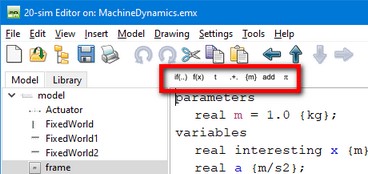

TaskbarEquationEditor

The taskbar of the Equation Editor.

Statements

Statements: click on this button to insert if-then-else expressions and more.

Functions

Functions: click on this button to insert functions.

Specials

Specials: click on this button to insert special functions.

Operators

Operators: click on this button to insert operators.

Units

Units: click on this button to insert quantities and units.

Declarations

Declarations: click on this button to insert declarations of parameters, variables and more.

Contstants

Constants: click on this button to insert predefined constants.
