Opening The 3D Mechanics Editor

Navigation:  Toolboxes > 3D Mechanics Toolbox > Introduction >

Opening The 3D Mechanics Editor

Previous pageReturn to chapter overviewNext page

You can open the 3D Mechanics Editor by:



1.In the 20-sim Editor from the Tools menu select 3D Mechanics Toolbox and 3D Mechanics Editor.

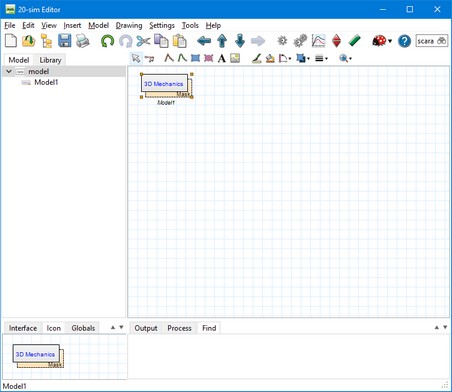

Now a masked model is inserted in the Editor and the 3D Mechanics Editor will be opened.

3DMechanicsModel

If you select a 3D Mechanics model and select Go Down, the 3D Mechanics Editor will be automatically opened.

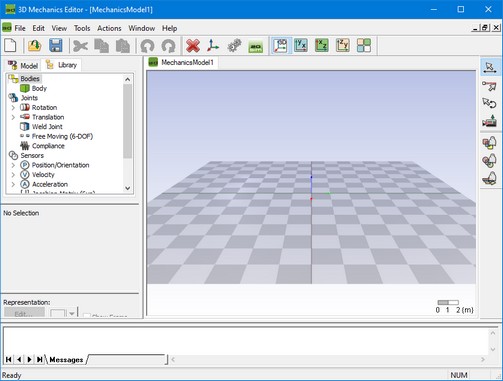

The first time you start 20-sim 3D Mechanics Editor the following screen will appear.



3DEditor

The 3D Mechanics Editor
