SignalGenerator-VariableBlock

Previous pageReturn to chapter overviewNext page

Library

Signal\Stochastic

Use

Domains: Discrete, Continuous. Size: 1-D. Allowed in: Block Diagrams.

Description

This model generates a block signal that alternates between 0 and 1. The mean time interval of a section is given by the parameter meanTimeInterval. The distribution of the time interval is uniform between [0, 2*meanTimeInterval]. With the parameter random seed you can choose to make the distribution variable or fixed for each simulation run.

VariableBlock

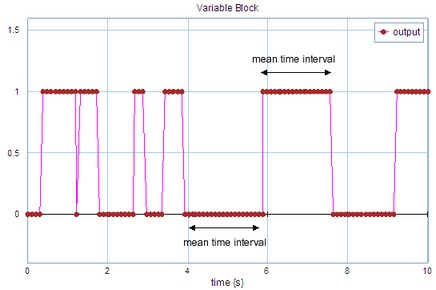

VariableBlock output with a mean time interval of 1 s.

Interface

Outputs

Description

output



Parameters



meanTimeInterval



seed

mean time {s} before the output signal changes

random seed



Limitations

seed must be a number in the region <0,65000>.
