Fork

Navigation:  Library > Iconic Diagrams > Mechanical > Translation > Transmission >

Fork

Previous pageReturn to chapter overviewNext page

Library

Iconic Diagrams\Mechanical\Translation\Transmission

Use

Domains: Continuous. Size: 1-D. Kind: Iconic Diagrams (Translation).

Description

Fork

This model is equivalent to the differential model of the Rotation library. It represents a special type of node where the forces are equal and the velocities are added:



p3.v = p1.v + p2.v;

p1.F = p2.F = p3.F;

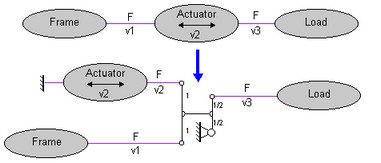

This model can for example be used for actuators that generate a force difference. With the fork model an equivalent model can be found with the actuator attached to the fixed world:

Fork2

Interface

Ports

Description

p1,p2,p3

Translation ports.
