The Torsion Bar Setup is a compact affordable demonstration setup that demonstrates some important features of a real machine:

•Motor inertia

•Load

•Drive flexibility

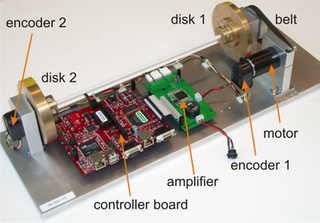

The Torsion Bar Setup v1.0.

Inputs and  Outputs

The interface of the TS-7300 has been limited to the following inputs and outputs:

Digital Inputs

•2 x Quadrature Encoder Input. The Encoder Input can have no reset and a reset on positive or negative index pulse.

Digital Outputs

•1 PWM output, to drive the motor via the H-bridge which is on the interface board.

•2 x LED. Two LED's are present on the board.

Supplier

The Torsion Bar Setup is  a product of Controllab Products B.V. Please contact Controllab Products B.V. for more details about this set-up.

Operating System

The Torsion Bar v1.0 setup is delivered with the following operating system:

•RTAI real-time Linux: The setup runs our customized RTAI real-time linux installation including the 20-sim 4C target support software.
